As much as I like the long, complicated projects that involve weeks of soldering, gluing, coding, tweaking, re-tweaking and debugging, it’s really refreshing to occasionally do something cool with no more than an hour or two of work.
This mini-project was my boyfriend’s idea. It’s an experiment in cooperative two-player Gitaroo Man, played using a gamepad for attack/charge and DDR pad for defense.
For those who aren’t familiar with it, Gitaroo Man is a rhythm game where you do battle using music. You play music on your gitaroo to attack or to charge your health bar. To defend against the enemy’s attacks, you dodge by pressing buttons in time with icons that fly toward the center of the screen. We thought the dodging phase of the game might map well to a DDR pad.
Videos first, tech details below. My boyfriend is on the gamepad, and one of my friends defends with the DDR pad. Theoretically you can play this with one person, but we suck too much at the moment. When we filmed this, we hadn’t played Gitaroo Man in years.. so we definitely could have done better with some more practice :)
Resurrection
https://youtube.com/watch?v=Cp5wrRF4QPg
Bee Jam Blues, Master mode
https://youtube.com/watch?v=_mB1lZ-WlMg
Implementation Details
This turned out to be such a quick project because it was really just some special-purpose firmware for my old Unicone2 controller emulator project. The firmware combines inputs from the gamepad and DDR pad, maps the DDR arrows to the buttons used for blocking in Gitaroo Man, and it includes a one-shot timer which converts sustained pressure on a dance pad arrow into a brief tap of the corresponding controller button. This way, standing still on the DDR pad won’t affect your ability to use the controller buttons normally during the attack phase.
Overview of all hardware and software components:

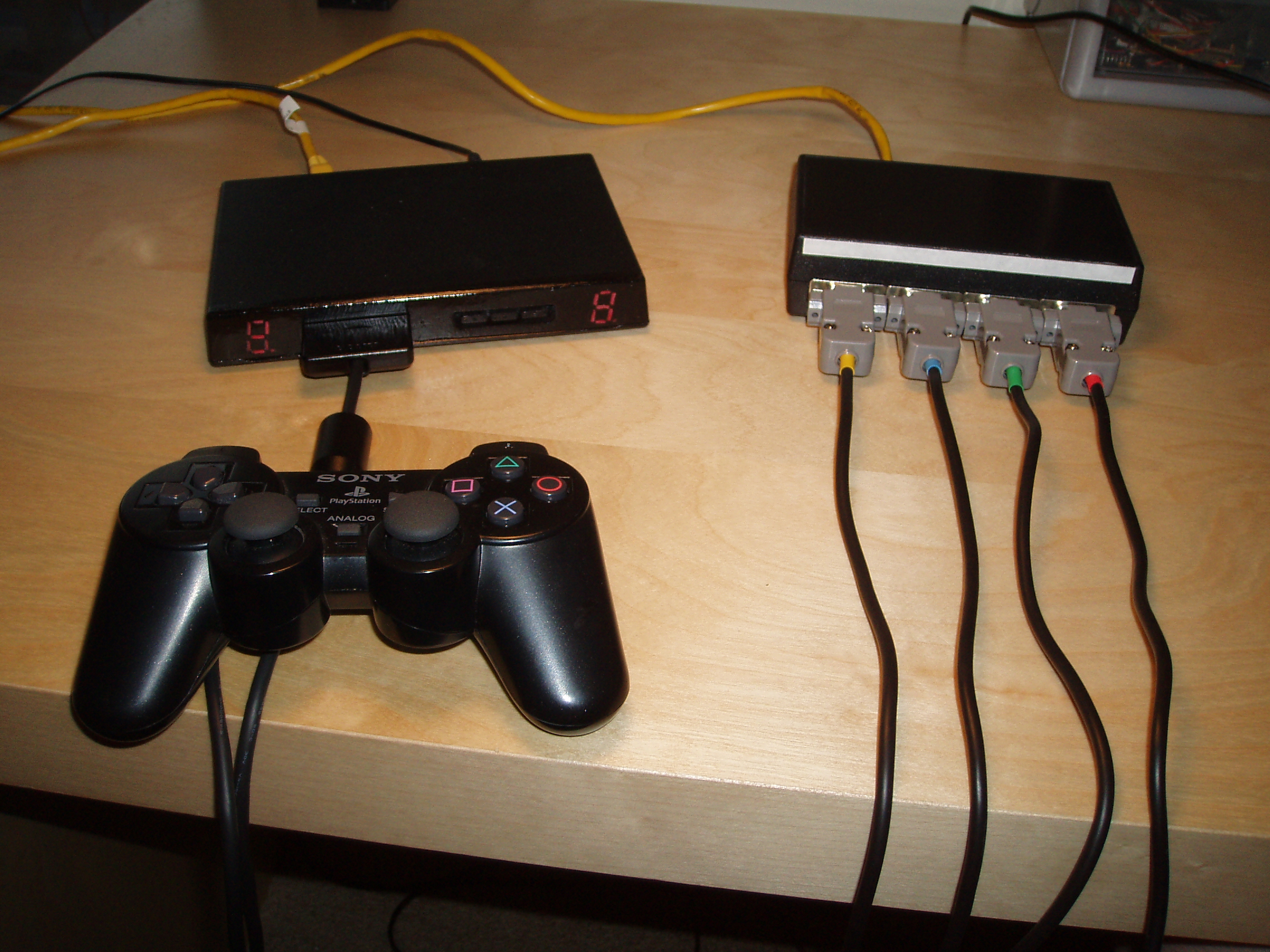

The Unicone2 hardware:
Links:
- Special-purpose firmware source code (navi-misc/unicone2/psx-base/special_gitaroo_ddr.spin)
- Unicone2 Subversion repository
- Gitaroo Man on Wikipedia
- Original post about the Unicone2 (August 2007)
{{
Special-purpose firmware for the Unicone2 base station:
This implements a special DDR pad mode for the game Gitaroo Man.
We use only port 1 on the base unit, and ports 1 and 2 on the
first remote port. The first port is intended to be used with a
normal Dual Shock controller, the second port with a DDR pad.
The normal controller is passed through 1:1 to the base unit.
On the DDR pad, the D-pad up, down, left, right are mapped to
triangle, cross, square, circle respectively. So, you can use
the controller to play the game normally, plus you can use the
DDR pad to defend.
Since you're likely to be standing on the pad while attacking too,
we need a way to prevent those inputs from interfering with the
attack phase. For this reason, we detect when you first press a
button on the DDR pad, and simulate just a momentary tap on the
corresponding controller button. This means you can't use the pad
to attack.
- This is configurable by setting TAP_LENGTH. A very long TAP_LENGTH
has pretty much the same effect as disabling this one-shot functionality.
TODO: Make this configurable with a button.
I like using the pad to attack sometimes :)
-- Micah Dowty <micah@navi.cx>
}}
CON
_CLKMODE = XTAL1 + PLL16X
_XINFREQ = 5_000_000
SLOT_CONTROLLER = 0
SLOT_DDR = 1
TAP_LENGTH_MS = 100
OBJ
Rem : "psx_remote_port"
RemDummy : "psx_remote_port"
Emu : "psx_controller_emulator"
VAR
long ddr_out_buf[Emu#STATE_BUFFER_LEN]
long ddr_stack[64]
long tap_length_ticks
PUB Main | remote, slot, emulator, buttons
' Start a single remote connection (port 1) and a single
' PSX controller emulator core.
Rem.start(0, 1)
Emu.start(8, 4, Emu#CONTROLLER_DUAL_SHOCK)
' Run a dummy remote unit on port 2, just to display FF on
' the LEDs to indicate that you're using the wrong port.
RemDummy.start(2, 3)
RemDummy.set_led_char(0, $F)
RemDummy.set_led_char(1, $F)
' Set up the 1:1 mapping for our controller
Emu.add_state_buffer(Rem.get_state_buffer(SLOT_CONTROLLER))
Emu.add_actuator_buffer(Rem.get_actuator_buffer(SLOT_CONTROLLER))
' For the DDR pad, we use a separate cog to translate the data. That
' cog has separate input and output buffers. Tell the emulator about
' our output buffer. The emulator cog will merge this with
' the data from our controller above.
Emu.add_state_buffer(@ddr_out_buf)
' Start a separate cog to translate the DDR buttons quickly
cognew(ddr_thread, @ddr_stack)
' Main loop for less time-critical things: Send low-frequency data back to
' the remote unit (LED and force feedback state).
repeat
update_controller_leds
update_ddr_out_leds
Rem.poll
RemDummy.poll
PRI ddr_thread | ddr_in_ptr, ddr_buttons, out_buttons, ddr_buttons_prev, timers[4]
' Just a tight loop to translate DDR pad data to appropriate controller data
tap_length_ticks := clkfreq / 1000 * TAP_LENGTH_MS
' Default state for the output buffer (Axes centered, buttons up)
bytefill(@ddr_out_buf, 0, Emu#STATE_BUFFER_LEN)
bytefill(@ddr_out_buf, $80, 6)
bytefill(@ddr_out_buf, $ff, 2)
ddr_in_ptr := Rem.get_state_buffer(SLOT_DDR)
repeat
ddr_buttons_prev := ddr_buttons
ddr_buttons := !WORD[ddr_in_ptr]
out_buttons := 0
if button_tap(ddr_buttons, ddr_buttons_prev, Rem#BTN_UP, @timers[0])
out_buttons |= Rem#BTN_TRIANGLE
if button_tap(ddr_buttons, ddr_buttons_prev, Rem#BTN_DOWN, @timers[1])
out_buttons |= Rem#BTN_X
if button_tap(ddr_buttons, ddr_buttons_prev, Rem#BTN_LEFT, @timers[2])
out_buttons |= Rem#BTN_SQUARE
if button_tap(ddr_buttons, ddr_buttons_prev, Rem#BTN_RIGHT, @timers[3])
out_buttons |= Rem#BTN_CIRCLE
WORD[@ddr_out_buf] := !out_buttons
PRI button_tap(current, prev, mask, timer_ptr) : out | timediff
' Utility function to handle emitting a short tap any time an
' incoming button press is detected. We release the output button
' when TAP_LENGTH elapses, or when the original button is released.
if current & mask
if prev & mask
' Button held down. Check timer
timediff := cnt - LONG[timer_ptr]
if timediff <= 0
' Timer hasn't expired
out~~
else
' Timer expired. Move the timer forward so it doesn't wrap.
out~
LONG[timer_ptr] := cnt
else
' Button just pressed. Set timer.
out~~
LONG[timer_ptr] := cnt + tap_length_ticks
else
' Button not pressed
out~
PRI update_controller_leds | state, x, y, magnitude, slope, leds
' On the controller slot's LEDs, display the approximate angle of the analog stick.
state := Rem.get_state_buffer(SLOT_CONTROLLER)
x := BYTE[state + Rem#AXIS_LX] - $80
y := BYTE[state + Rem#AXIS_LY] - $80
magnitude := x * x + y * y
if y <> 0
slope := (x << 8) / y
else
slope := $7FFFFF
if magnitude < 600
' Dead zone. LEDs are blank.
leds := 0
elseif x > 0
' Right half (+x)
if slope > $100
leds := $04 ' Upper right
elseif slope > 0
leds := $02 ' Bottom
elseif slope > -$100
leds := $20 ' Top
else
leds := $10 ' Lower right
else
' Left half (-x)
if slope > $100
leds := $40 ' Lower left
elseif slope > 0
leds := $20 ' Top
elseif slope > -$100
leds := $02 ' Bottom
else
leds := $01 ' Upper left
Rem.set_led_segments(SLOT_CONTROLLER, leds)
PRI update_ddr_in_leds | buttons, leds
' On the DDR slot's LEDs, display which pads are pressed.
' This version shows the inputs from the pad.
buttons := !WORD[Rem.get_state_buffer(SLOT_DDR)]
leds := 0
if buttons & Rem#BTN_UP
leds |= $20
if buttons & Rem#BTN_DOWN
leds |= $02
if buttons & Rem#BTN_LEFT
leds |= $41
if buttons & Rem#BTN_RIGHT
leds |= $14
Rem.set_led_segments(SLOT_DDR, leds)
PRI update_ddr_out_leds | buttons, leds
' On the DDR slot's LEDs, display which pads are pressed.
' This version shows the outputs after translation.
buttons := !WORD[@ddr_out_buf]
leds := 0
if buttons & Rem#BTN_TRIANGLE
leds |= $20
if buttons & Rem#BTN_X
leds |= $02
if buttons & Rem#BTN_SQUARE
leds |= $41
if buttons & Rem#BTN_CIRCLE
leds |= $14
Rem.set_led_segments(SLOT_DDR, leds)
