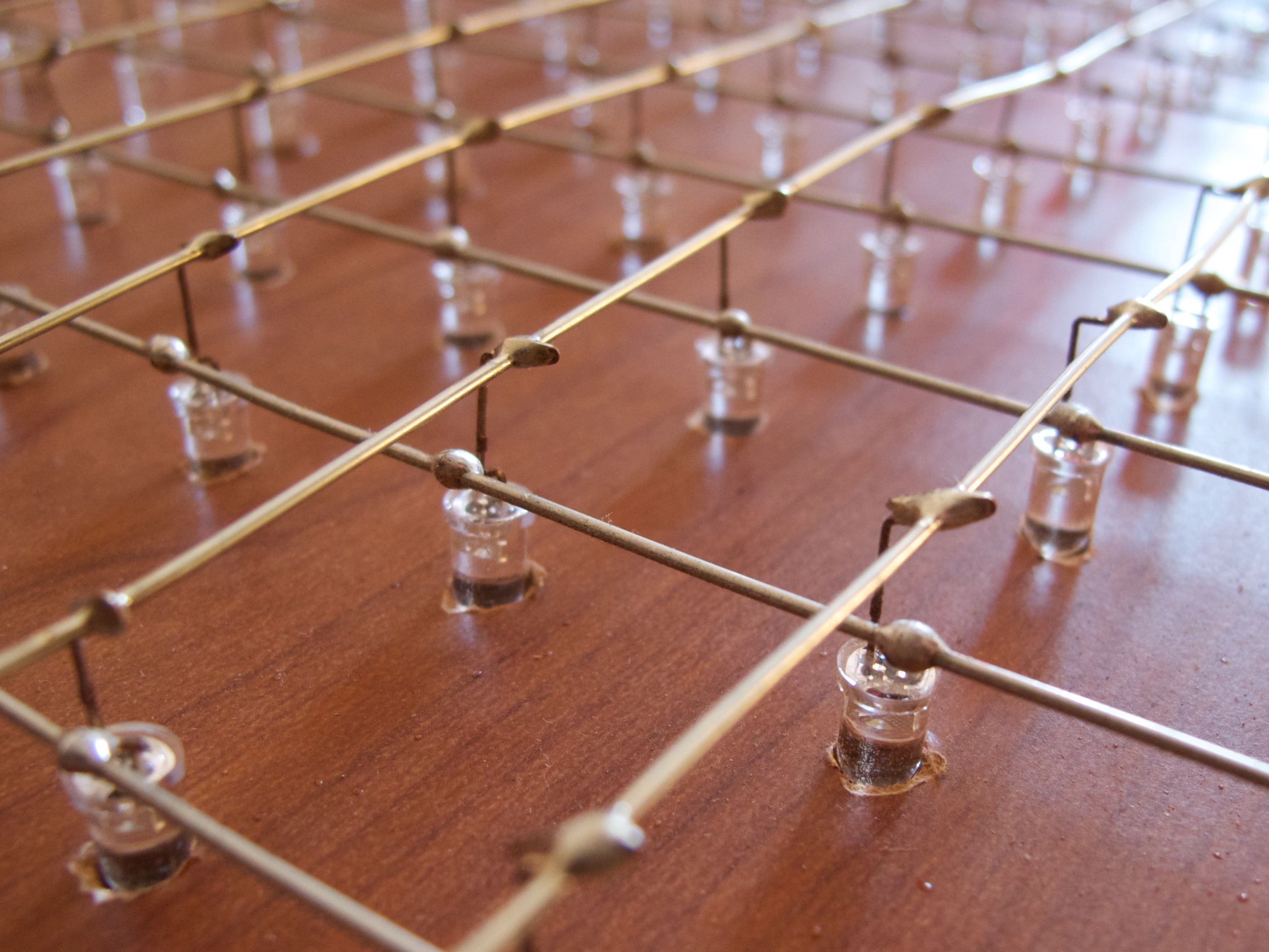

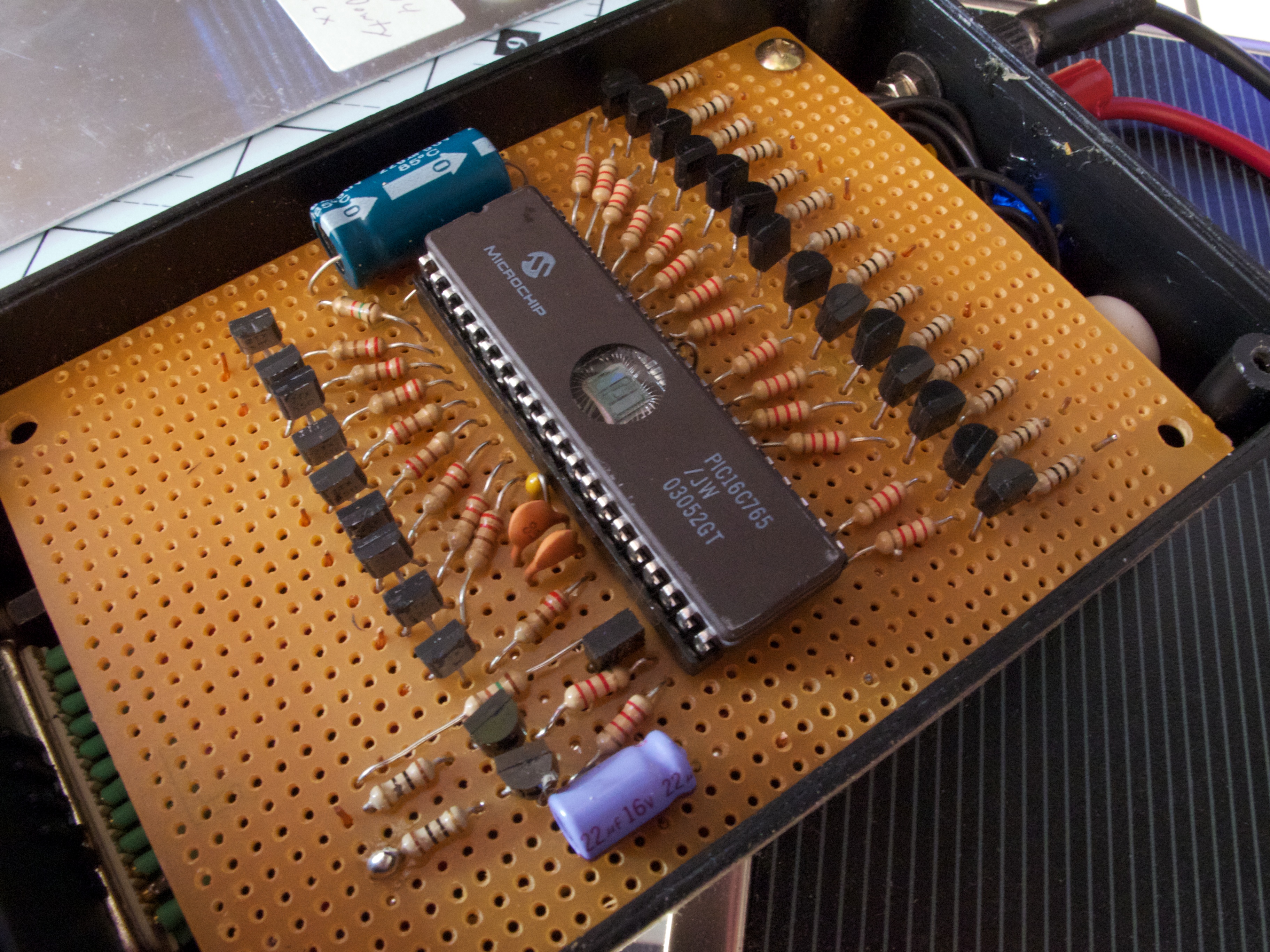

This is a 9×16 LED matrix I made by hand back in 2004, with LEDs I had left over from another, even sillier project. It has a USB interface powered by a PIC16C765 microcontroller, one of the first to feature a built-in USB device interface.
This video post is something of a eulogy for the project. I have been trying to simplify and unclutter my life lately, and to that end I’ve been having to recycle, donate, or throw out a lot of things. This includes old projects of mine. This matrix was a fun way to spend a couple weekends seven years ago, but since then it’s just been taking up space in my apartment. So, before throwing it out, I thought I’d take a few pictures and make a silly video.
For what it’s worth, the firmware and PC source code (navi-misc/ledboard/usb144) are still available.
;################################################################################
;
; display.asm - Implements the LED matrix driver itself
;
; The LED board project
; Copyright (C) 2004 Micah Dowty <micah@navi.cx>
;
; This library is free software; you can redistribute it and/or
; modify it under the terms of the GNU Lesser General Public
; License as published by the Free Software Foundation; either
; version 2.1 of the License, or (at your option) any later version.
;
; This library is distributed in the hope that it will be useful,
; but WITHOUT ANY WARRANTY; without even the implied warranty of
; MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
; Lesser General Public License for more details.
;
; You should have received a copy of the GNU Lesser General Public
; License along with this library; if not, write to the Free Software
; Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
;
;###############################################################################
errorlevel -226 ; suppress gpasm's silly include file warning
#include <p16c765.inc>
#include "macros.inc"
#include "../include/ledboard_protocol.h"
errorlevel -302 ; supress "register not in bank0, check page bits" message
errorlevel -306 ; ..and the page boundary warning
global display_poll
global display_init
global display_request_flip
global display_poll_flip
global display_seq_write_byte
global display_seek
global back_fsr
global back_status
global scan_rate
global pwm_cycles
global pwm_table
extern temp
extern temp2
;; Hardware definitions
#define ROW_DRIVE_0 TRISA, 1
#define ROW_DRIVE_1 TRISA, 2
#define ROW_DRIVE_2 TRISA, 3
#define ROW_DRIVE_3 TRISA, 4
#define ROW_DRIVE_4 TRISA, 5
#define ROW_DRIVE_5 TRISE, 0
#define ROW_DRIVE_6 TRISE, 1
#define ROW_DRIVE_7 TRISE, 2
#define ROW_DRIVE_8 TRISC, 0
#define COLUMNS_LOW PORTD
#define COLUMNS_HIGH PORTB
bank0 udata
write_pointer res 1 ; The current position in writing to the backbuffer
scan_state res 2 ; Function pointer for the scanner thread's state
scan_rate res 2 ; 16-bit big-endian TMR1 adjustment used to control scanning speed.
; Higher values make it go faster, improving refresh rate
; but possibly increasing flicker due to USB activity.
pwm_cycles res 1 ; Number of scan cycles used for PWM, sets our PWM resolution
pwm_table res 0x10 ; Table mapping LED brightness codes to PWM values
pwm_row res 0x10 ; PWM values for the current LED row
unbanked udata_shr
display_flags res 1
pwm_iter res 1 ; Iterates from 0 up to pwm_cycles, inclusive
front_fsr res 1 ; FSR pointing to the current front buffer
front_status res 1 ; STATUS pointing to the current front buffer
back_fsr res 1 ; FSR pointing to the current back buffer
back_status res 1 ; STATUS pointing to the current back buffer
flip_counter res 1 ; Count number of page flips for display_poll_flip
#define FLAG_FLIP_REQUEST display_flags, 0
bank1 udata
vram_buffer_1 res LEDBOARD_VRAM_SIZE
bank2 udata
vram_buffer_2 res LEDBOARD_VRAM_SIZE
prog3 code
;*****************************************************************************************
;************************************************************************** Entry Points *
;*****************************************************************************************
display_init
fpset scan_state, scanner_thread
clrf flip_counter
;; Clear all video buffers
bzero vram_buffer_1, LEDBOARD_VRAM_SIZE
bzero vram_buffer_2, LEDBOARD_VRAM_SIZE
bzero pwm_table, 0x10
bankisel vram_buffer_1 ; Start the front buffer out at vram_buffer_1
movf STATUS, w
movwf front_status
movlw vram_buffer_1
movwf front_fsr
bankisel vram_buffer_2 ; ...and the back buffer at vram_buffer_2
movf STATUS, w
movwf back_status
movlw vram_buffer_2
movwf back_fsr
banksel scan_rate
movlw 0xFD ; Default scan rate is 0xFD00
movwf scan_rate
clrf scan_rate+1
clrf display_flags ; Clear all display flags
movlw 0x10 ; 16 PWM cycles by default
movwf pwm_cycles
banksel T1CON ; Start TMR1 running off the instruction clock
movlw 0x01
movwf T1CON
return
;; Called frequently from the main loop. It runs our scanning thread a bit
;; every time TMR1 overflows, adjusting it according to our scan_rate parameter.
display_poll
banksel PIR1 ; Go away if TMR1 hasn't done anything interesting
btfss PIR1, TMR1IF
return
bcf PIR1, TMR1IF
movf scan_rate+1, w ; Add our scan_rate adjustment
addwf TMR1L, f
btfsc STATUS, C
incf TMR1H, f
movf scan_rate, w
addwf TMR1H, f
fpgoto scan_state ; Jump to our scanner thread
;; Request an asynchronous page flip. Has the side effect of resetting
;; the write pointer.
display_request_flip
bsf FLAG_FLIP_REQUEST
banksel write_pointer ; Reset the write_pointer
clrf write_pointer
return
;; Return in 'w' the number of page flips that have completed successfully
;; since the last call to this function.
display_poll_flip
movf flip_counter, w
clrf flip_counter
return
;; Set our write pointer to the given column number, form 'w'.
display_seek
banksel write_pointer
movwf write_pointer
return
; Sequentially write the byte given in 'w' to the backbuffer.
display_seq_write_byte
movwf temp
banksel write_pointer
movf back_status, w
movwf STATUS
movlw LEDBOARD_VRAM_SIZE ; Test write_pointer - LEDBOARD_VRAM_SIZE
subwf write_pointer, w
btfsc STATUS, C
return ; C=1, B=0, LEDBOARD_VRAM_SIZE <= write_pointer
movf write_pointer, w ; Write and increment
addwf back_fsr, w
movwf FSR
movf temp, w
movwf INDF
incf write_pointer, f
return
code
;*****************************************************************************************
;*********************************************************************** Scanning Thread *
;*****************************************************************************************
;; Prepare the pwm_row entry for one column
prepare_pwm_row macro address, column_number, high_nybble
movf front_status, w ; Get this LED's nybble
movwf STATUS
movf front_fsr, w
addlw address
movwf FSR
if high_nybble
swapf INDF, w
else
movf INDF, w
endif
andlw 0x0F ; Index into pwm_table
addlw pwm_table
bankisel pwm_table
movwf FSR
movf INDF, w ; Store the result in this LED's pwm_row byte
banksel pwm_row
movwf pwm_row + column_number
endm
;; Compare one column against the PWM iterator and right-shift an
;; inverted bit for its column driver into 'temp'.
;; Everything in here stays in bank0.
shift_pwm_column macro column_number
movf pwm_row + column_number, w
subwf pwm_iter, w ; This borrows if our PWM value > pwm_iter.
rrf temp, f ; We want the LED to be high if it borrows, so when C=0.
; We get the invert for free below, when we use comf.
endm
;; Output all PWM values for the current row
generate_row_pwm
banksel pwm_row
shift_pwm_column 0x00
shift_pwm_column 0x01
shift_pwm_column 0x02
shift_pwm_column 0x03
shift_pwm_column 0x04
shift_pwm_column 0x05
shift_pwm_column 0x06
shift_pwm_column 0x07
comf temp, w
movwf COLUMNS_LOW
shift_pwm_column 0x08
shift_pwm_column 0x09
shift_pwm_column 0x0A
shift_pwm_column 0x0B
shift_pwm_column 0x0C
shift_pwm_column 0x0D
shift_pwm_column 0x0E
shift_pwm_column 0x0F
comf temp, w
movwf COLUMNS_HIGH
return
;; Macro to scan one row of our display
scan_row macro prev_port, prev_bit, current_port, current_bit, address
local pwm_cycle_loop
local pwm_row_done
;; Prepare the pwm_row buffer for the current row.
;; We do this before changing row drivers, to reduce the time
;; when all LEDs are off
prepare_pwm_row address + 0x00, 0x00, 1
prepare_pwm_row address + 0x00, 0x01, 0
prepare_pwm_row address + 0x01, 0x02, 1
prepare_pwm_row address + 0x01, 0x03, 0
prepare_pwm_row address + 0x02, 0x04, 1
prepare_pwm_row address + 0x02, 0x05, 0
prepare_pwm_row address + 0x03, 0x06, 1
prepare_pwm_row address + 0x03, 0x07, 0
prepare_pwm_row address + 0x04, 0x08, 1
prepare_pwm_row address + 0x04, 0x09, 0
prepare_pwm_row address + 0x05, 0x0A, 1
prepare_pwm_row address + 0x05, 0x0B, 0
prepare_pwm_row address + 0x06, 0x0C, 1
prepare_pwm_row address + 0x06, 0x0D, 0
prepare_pwm_row address + 0x07, 0x0E, 1
prepare_pwm_row address + 0x07, 0x0F, 0
;; Turn off the last row driver, clear the column drivers, then turn on the
;; current row. This sequence is necessary to keep the rows isolated.
banksel prev_port
bsf prev_port, prev_bit
banksel COLUMNS_LOW
clrf COLUMNS_LOW
clrf COLUMNS_HIGH
banksel current_port
bcf current_port, current_bit
;; Loop over each PWM cycle...
banksel pwm_iter
clrf pwm_iter
pwm_cycle_loop
pscall generate_row_pwm
fpsleep scan_state
banksel pwm_iter ; Are we there yet?
movf pwm_cycles, w
xorwf pwm_iter, w
pagesel pwm_row_done
btfsc STATUS, Z
goto pwm_row_done
incf pwm_iter, f
psgoto pwm_cycle_loop
pwm_row_done
endm
;; Page flip handler. This swaps the front and back
;; pointers, and increments the flip counter.
page_flip
bcf FLAG_FLIP_REQUEST
swapff front_fsr, back_fsr
swapff front_status, back_status
incf flip_counter, f
return
;; This is a cooperatively-multitasked thread that scans through the LED matrix.
;; It's invoked by display_poll each time TMR1 rolls over, and runs until the
;; next fpsleep.
scanner_thread
scan_row ROW_DRIVE_8, ROW_DRIVE_0, 0x00
scan_row ROW_DRIVE_0, ROW_DRIVE_1, 0x08
scan_row ROW_DRIVE_1, ROW_DRIVE_2, 0x10
scan_row ROW_DRIVE_2, ROW_DRIVE_3, 0x18
;; This gets big, switch banks...
psgoto scanner_second_half
prog4 code
scanner_second_half
scan_row ROW_DRIVE_3, ROW_DRIVE_4, 0x20
scan_row ROW_DRIVE_4, ROW_DRIVE_5, 0x28
scan_row ROW_DRIVE_5, ROW_DRIVE_6, 0x30
scan_row ROW_DRIVE_6, ROW_DRIVE_7, 0x38
scan_row ROW_DRIVE_7, ROW_DRIVE_8, 0x40
clrwdt ; Pat the watchdog only after a successful scan
pagesel page_flip
btfsc FLAG_FLIP_REQUEST
call page_flip
psgoto scanner_thread
end
;### The End ###;################################################################################
;
; commands.asm - Implementation of our vendor-specific commands
;
; The LED board project
; Copyright (C) 2004 Micah Dowty <micah@navi.cx>
;
; This library is free software; you can redistribute it and/or
; modify it under the terms of the GNU Lesser General Public
; License as published by the Free Software Foundation; either
; version 2.1 of the License, or (at your option) any later version.
;
; This library is distributed in the hope that it will be useful,
; but WITHOUT ANY WARRANTY; without even the implied warranty of
; MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
; Lesser General Public License for more details.
;
; You should have received a copy of the GNU Lesser General Public
; License along with this library; if not, write to the Free Software
; Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
;
;###############################################################################
errorlevel -226 ; suppress gpasm's silly include file warning
#include <p16c765.inc>
#include "usb_defs.inc"
#include "macros.inc"
#include "../include/ledboard_protocol.h"
errorlevel -302 ; suppress "register not in bank0, check page bits" message
global CheckVendor
global ep0_write_backbuffer
extern USB_dev_req
extern BufferData
extern wrongstate
extern temp
extern Send_0Len_pkt
extern display_request_flip
extern display_poll_flip
extern display_seek
extern display_seq_write_byte
extern pwm_cycles
extern pwm_table
extern scan_rate
bank0 udata
src_ptr res 1
dest_ptr res 1
byte_iterator res 1
code
;********************************************** Vendor-specific request table
defineRequest macro id, handler
movf BufferData+bRequest,w
xorlw id
pagesel handler
btfsc STATUS,Z
goto handler
endm
CheckVendor
defineRequest LEDBOARD_CTRL_RANDOM_WRITE3, request_randomWrite3
defineRequest LEDBOARD_CTRL_REQUEST_FLIP, request_requestFlip
defineRequest LEDBOARD_CTRL_SEQ_WRITE12, request_seqWrite12
defineRequest LEDBOARD_CTRL_SEQ_WRITE4, request_seqWrite4
defineRequest LEDBOARD_CTRL_RANDOM_WRITE8, request_randomWrite8
defineRequest LEDBOARD_CTRL_SET_SCAN_RATE, request_setScanRate
defineRequest LEDBOARD_CTRL_SET_PWM_CYCLES, request_setPwmCycles
defineRequest LEDBOARD_CTRL_SET_PWM_ENTRY, request_setPwmEntry
defineRequest LEDBOARD_CTRL_GET_LED_VOLTAGE, request_getLedVoltage
defineRequest LEDBOARD_CTRL_POLL_FLIP, request_pollFlip
defineRequest LEDBOARD_CTRL_STATUS_INTENSITY, request_statusIntensity
psgoto wrongstate ; Not a recognized request
;********************************************** Macros
; Acknowledge the command with a zero-length packet
returnEmpty macro
pagesel Send_0Len_pkt
goto Send_0Len_pkt
endm
; Return 'length' bytes of data copied from buffer
returnBuffer macro buffer, length
local loop
movlw buffer
banksel src_ptr
movwf src_ptr
banksel BD0IAL
movf low BD0IAL,w ; Get the address of the EP0 IN buffer
banksel dest_ptr
movwf dest_ptr ; Start a buffer pointer we'll increment...
movlw length
movwf byte_iterator
loop
bankisel buffer
movf src_ptr, w
movwf FSR
movf INDF, w ; Save the referenced byte in temp
movwf temp
movf dest_ptr, w ; get address of buffer
movwf FSR
bsf STATUS,IRP ; indirectly to banks 2-3
movf temp, w ; Write the saved byte to our buffer
movwf INDF
incf src_ptr, f ; Next...
incf dest_ptr, f
banksel byte_iterator
decfsz byte_iterator, f
goto loop
banksel BD0IBC
bsf STATUS, RP0
movlw length
movwf BD0IBC ; set byte count
movlw 0xc8 ; DATA1 packet, DTS enabled
movwf BD0IST ; give buffer back to SIE
return
endm
; Return 1 byte from 'w'
returnByte macro
movwf temp ; Save the byte
banksel BD0IAL
movf low BD0IAL,w ; Get the address of the EP0 IN buffer
movwf FSR
bsf STATUS,IRP ; indirectly to banks 2-3
movf temp, w ; Write the saved byte to our buffer
movwf INDF
banksel BD0IBC
bsf STATUS, RP0
movlw 1
movwf BD0IBC ; set byte count
movlw 0xc8 ; DATA1 packet, DTS enabled
movwf BD0IST ; give buffer back to SIE
return
endm
;********************************************** Request handlers
; Request a page flip at the display's next opportunity.
; This acknowledges right away, even though the flip itself is asynchronous.
request_requestFlip
pscall display_request_flip
returnEmpty
;; Get the number of asynchronous page flips that have completed
;; since the last time this request was issued. Returns a 1-byte packet.
request_pollFlip
pscall display_poll_flip
returnByte
; Perform a random 3-byte write to the display, using
; the low byte of wValue as a column address.
request_randomWrite3
banksel BufferData
movf BufferData+wValue, w
pscall display_seek
banksel BufferData
movf BufferData+(wValue+1), w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+wIndex, w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+(wIndex+1), w
pscall display_seq_write_byte
returnEmpty
; Sequentially write 4 bytes from wValue and wIndex
request_seqWrite4
banksel BufferData
movf BufferData+wValue, w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+(wValue+1), w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+wIndex, w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+(wIndex+1), w
pscall display_seq_write_byte
returnEmpty
; Seek to the column given in the low byte of wValue, write data sent to EP0
request_randomWrite8
banksel BufferData
movf BufferData+wValue, w
pscall display_seek
; Don't acknowledge yet, wait for some data on EP0 OUT
movlw EP0_WRITE_BACKBUFFER
banksel USB_dev_req
movwf USB_dev_req
return
; Perform a sequential 12-byte write. Start with the 4 bytes in this
; packet, and prepare to receive an 8-byte data packet.
request_seqWrite12
banksel BufferData
movf BufferData+wValue, w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+(wValue+1), w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+wIndex, w
pscall display_seq_write_byte
banksel BufferData
movf BufferData+(wIndex+1), w
pscall display_seq_write_byte
; Don't acknowledge yet, wait for some data on EP0 OUT
movlw EP0_WRITE_BACKBUFFER
banksel USB_dev_req
movwf USB_dev_req
return
; Handles the data packets that should follow request_seqWrite12
ep0_write_backbuffer
banksel BD0OAL
movf low BD0OAL,w ; Get the address of the EP0 OUT buffer
banksel src_ptr
movwf src_ptr ; Start a buffer pointer we'll increment...
banksel BD0OBC
movf BD0OBC, w
banksel byte_iterator
movwf byte_iterator
ep0loop
banksel src_ptr
movf src_ptr,w ; get address of buffer
movwf FSR
bsf STATUS,IRP ; indirectly to banks 2-3
movf INDF, w
pscall display_seq_write_byte
banksel src_ptr
incf src_ptr, f ; Next...
pagesel ep0loop
decfsz byte_iterator, f
goto ep0loop
return
; Set the current LED scan rate, from wValue
request_setScanRate
banksel BufferData
movf BufferData+wValue, w
banksel scan_rate
movwf scan_rate+1
banksel BufferData
movf BufferData+(wValue+1), w
banksel scan_rate
movwf scan_rate
returnEmpty
; Set the number of PWM cycles, from wValue low
request_setPwmCycles
banksel BufferData
movf BufferData+wValue, w
banksel pwm_cycles
movwf pwm_cycles
returnEmpty
; Set one entry in our PWM table
request_setPwmEntry
banksel BufferData
movf BufferData+wIndex, w
andlw 0x0F
addlw pwm_table
bankisel pwm_table
movwf FSR
movf BufferData+wValue, w
movwf INDF
returnEmpty
;; Read back the LED supply voltage, from AN0.
;; This is nice and simple with no precharge delay, since
;; we only have one analog input and it was init'ed in usb_main.
request_getLedVoltage
banksel ADCON0
bsf ADCON0, GO
pagesel adc_loop
adc_loop
btfsc ADCON0, NOT_DONE
goto adc_loop
movf ADRES, w
returnByte
;; Set the intensity of the status LED (on CCP1) from the
;; high 10 bits of wValue.
request_statusIntensity
banksel BufferData
movf BufferData+(wValue+1), w
banksel CCPR1L
movwf CCPR1L
banksel BufferData
rrf BufferData+wValue, f
rrf BufferData+wValue, w
andlw 0x30
iorlw 0x0F
banksel CCP1CON
movwf CCP1CON
returnEmpty
end
;### The End ###
